Description
The Blackbox Air GPS system is very easy to install and very easy to use.
It takes 5 minutes to install and can be swapped quickly and easily into another machines. Utilising a Android tablet and intuitive software, this unit is a very easy to use and cost effective.

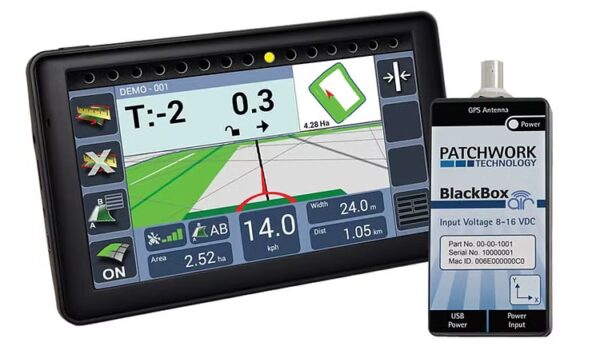

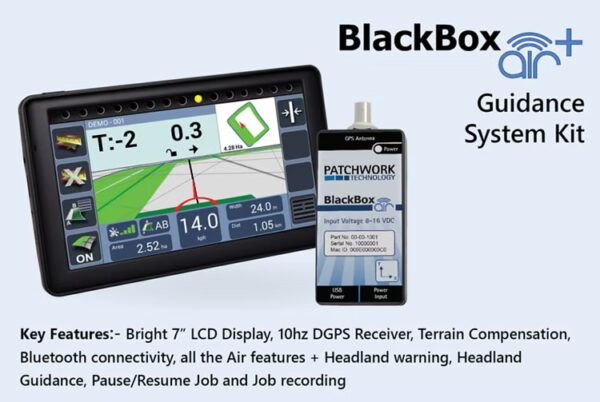

The BlackBox Air+ Kit includes the BlackBox Air GPS package with the addition of the Air+ software preloaded with its range of enhanced features:
Features
- Android OS Application
- Area Measurement
- Terrain Compensation
- Bluetooth connectivity
- Field boundary measurement and auto detection
- Field recognition
- Headland Warning
- Headland Guidance
- Pause and Resuming of a Job
- Job Recording
- Automatic Recording Option
- Synchronising of Data (3G and WiFi)
- Tracking (3G and WiFi)
- Plug and Play for Immediate Set-Up
- Operates from 12v vehicle power supply
- Store Farm/Fields and Boundaries
- Straight and Curved 3D Guidance modes
- USB port for charging device
Specification

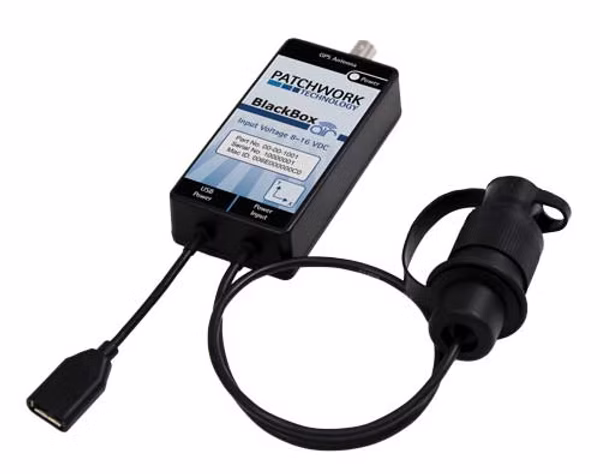

BlackBox Air Bluetooth Receiver
| Receiver |
10hz DGPS (WAAS, EGNOS and GLONASS) |
| Terrain Compensator |
2 Axis |
| Power Input |
8-16 VDC input |
| Bluetooth |
2.0 |
| USB charge port |
5V 2A |
| Dimensions |
117 x 51 x 25 mm |
| Weight |
155g |

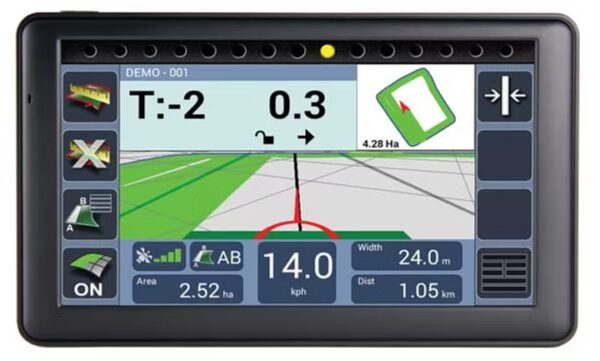

Tablet
Standard 7” Android Tablet
A light weight Android tablet with bright 7” LCD display that is supplied as standard with the base BlackBox kits. Supplied with all the accessories required to mount to your vehicle and charge the internal battery.
Features
- 7” Capacitive Touch Screen
- 800 x 480 Resolution
- 4 Core 1.5GHz Processor
- 768 MB Ram
- 16 GB Internal Storage
- Rechargeable Li-Ion Battery

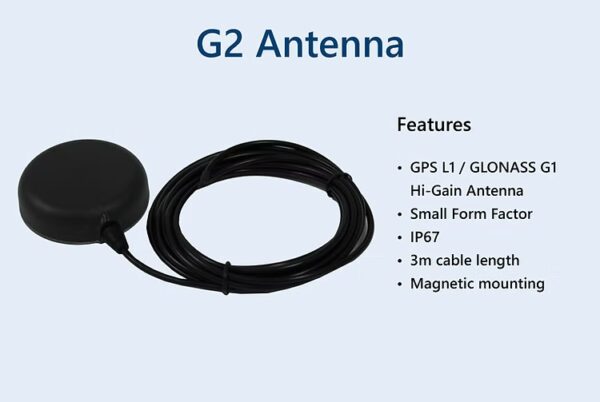

Antenna G2
The G2 option is a hi-gain antenna which has improved filtering to increase overall accuracy, this is recommended for more precise field work, including Spraying, drilling and when using the BlackBox for automatic section and planter shut off control.
Features
- GPS L1 / GLONASS G1 Hi-Gain Antenna
- Small Form Factor
- IP67
- 3m cable length
- Magnetic mounting
