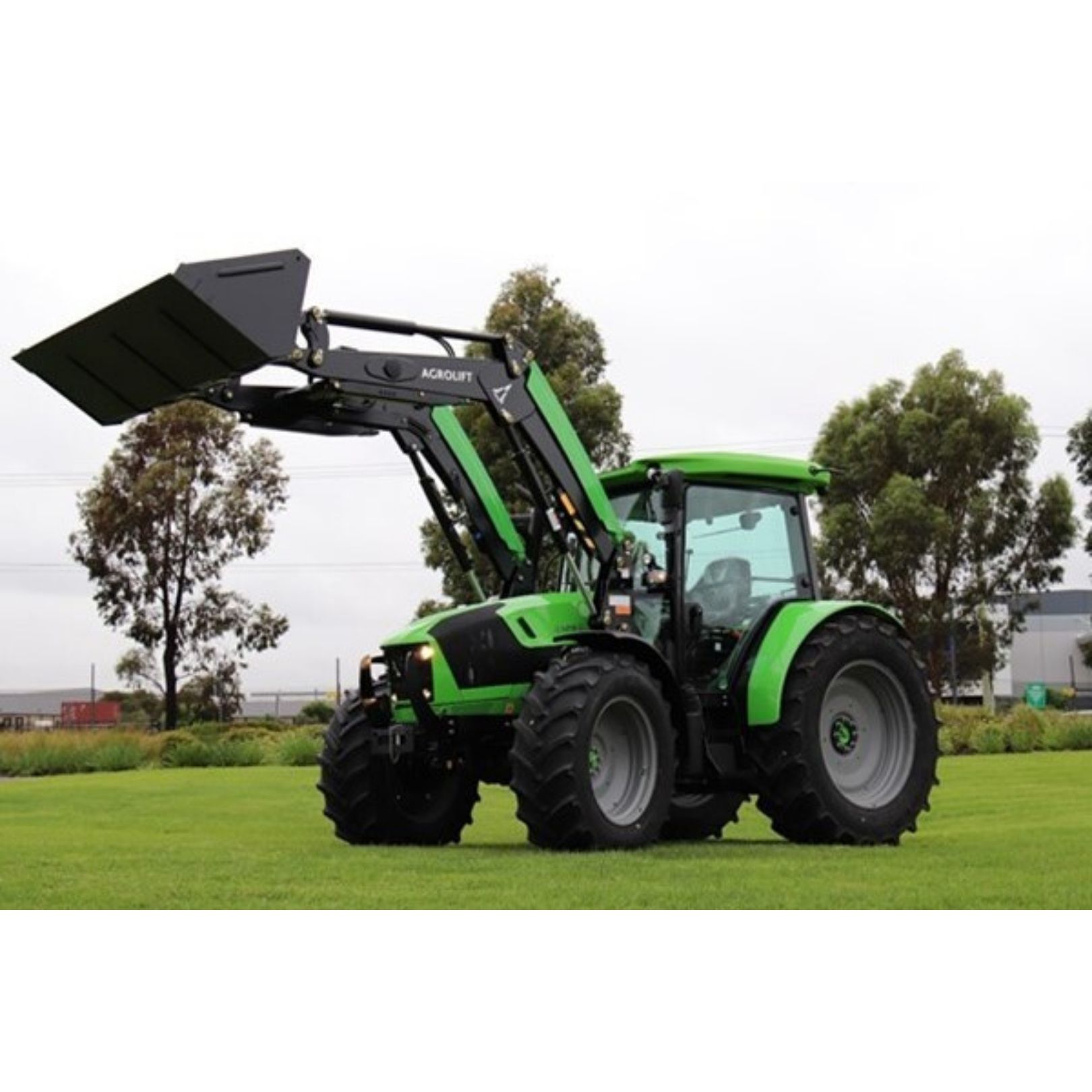

Deutz 5105.4G Heavy Duty Tractor with Loader


New Deutz-Fahr 5105.4G Heavy Duty Cab tractor with loader fitted.


FARMotion Tier 4i Diesel Engine

4 Cyl/3849cc Turbocharged/Intercooled

Electronically Controlled

Emission control by DOC unit

Liquid/Oil Cooled with fixed fan

High-pressure Diesel injection/common rail

102 hp Max hp @ 2200 rpm (2000/25/CE)

5 Hp Power Boost

Torque 408 Nm @1600 rpm

100% Bio-Diesel Compliant

Programmable Engine Speed

Powercore Air Filter with Dust Ejectors

Side vertical exhaust

Fuel Tank 135 litres


40/40 forward/reverse gears

Wet clutch Powershuttle

Shuttle modulation with 5 settings

5 speeds/4 Ranges / 2 stage Powershift

Comfort Clutch

Stop and Go function

Front Wheel Assist – Push Button

4 Wheel Independent Braking

100% Front & Rear Diff Lock – Push Button

40 km/h Road speed @ Super Economy RPM


Independent wet multidisc clutch

4 Speed PTO 540/540E- 1000/1000E

Push Button Control in cab/rear fender

Auto PTO

Interchangeable PTO Spline Function

1’’ 3/8 – 6 Spline PTO shaft

Wheel Equipment & Miscellaneous

Adjustable Radial Wheel Equipment

420/70R24 Front -480/70R34 Rear Tyres

Front Weight Frame

Operator Environment

D2L Class Air Conditioned Cab

Super Deluxe Air Seat

Tilt and telescopic steering wheel

Hi-Visibility Glass Roof/rear wiper

INFOCENTER Digital Display

MP3 Radio Player with Twin Speakers

Telescopic Mirrors

4 Cabin Work lights

2 Bonnet Front Work lights

Rotating Beacon


Open Centre Hyd Pump System

55 L/min Hyd flow at Rear Remotes

Separate 40L/min Steering Pump

2 Sets of Remotes -Kickout and Float

Electronic hitch with position & draft control

Free flow return Line

External Raise & lower on Rear Fenders

Cat 2 Hook ends–telescopic stabilisers

3600 kg lift capacity

12v elec. socket

Weights & Dimensions

Wheelbase 2400 mm

Length 4270 mm

Total Height 2700mm

Total Weight 4150 kg


We have our own delivery driver who can service the full NSW South Coast, covering areas like:
Bega | Candelo | Merimbula | Eden | Brogo | Verona | Bemboka | Numbugga | Mogilla | Tantawangalo | Pambula | Tathra | Wyndham | Burragate | Lochiel |  Nimmitabel | Bibbenluke | Cooma | Dalgety | Berridale | Jindabyne | Yowrie | Bermagui & much more!

Additional information







Tractor New/Used


Horse Power

100hp to 200hp

$115,800.00 Inc GST

Our prices include GST

Out of stock
