Jaylor 5850HD Twin Auger Mixer Wagon


Vertical – TMR Mixers

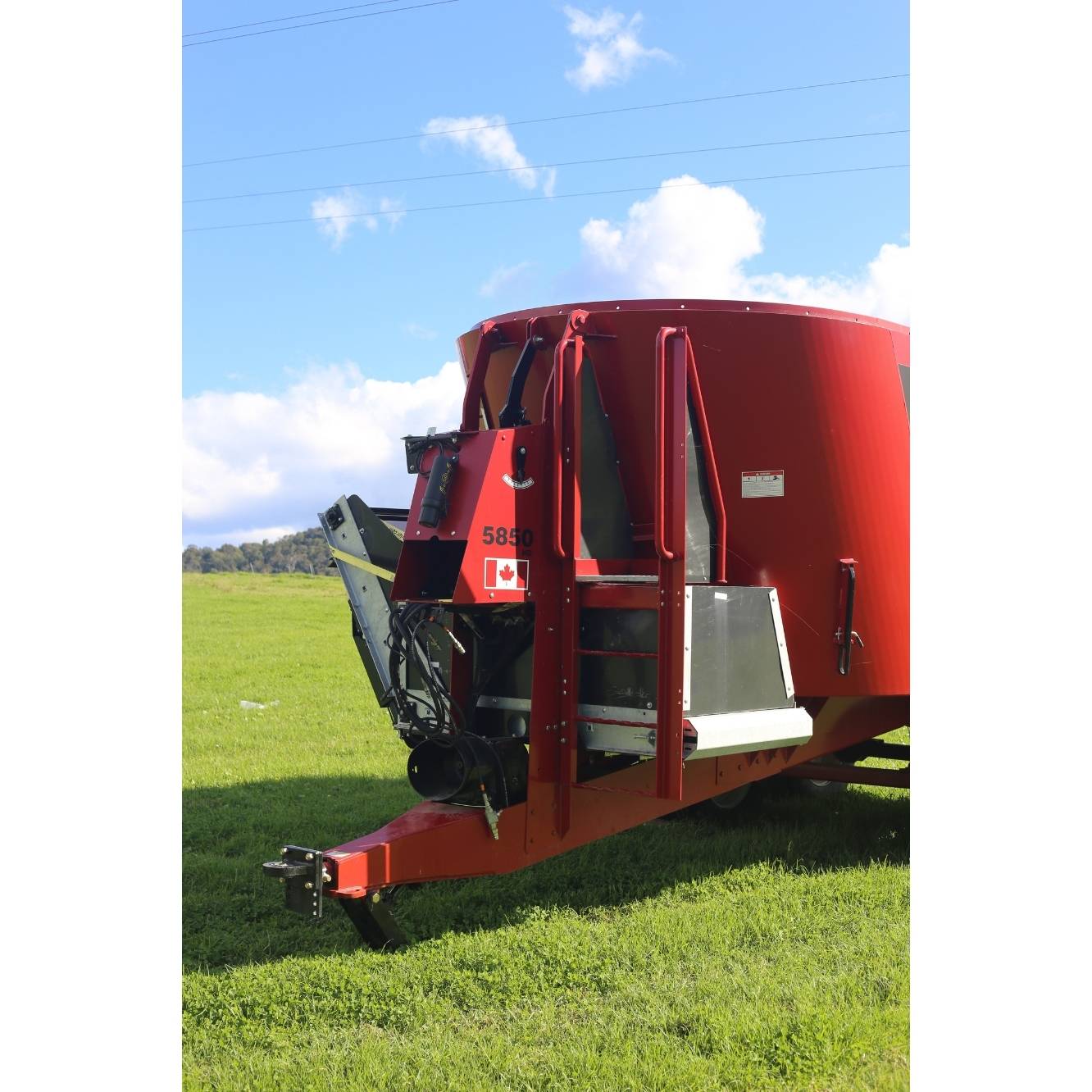

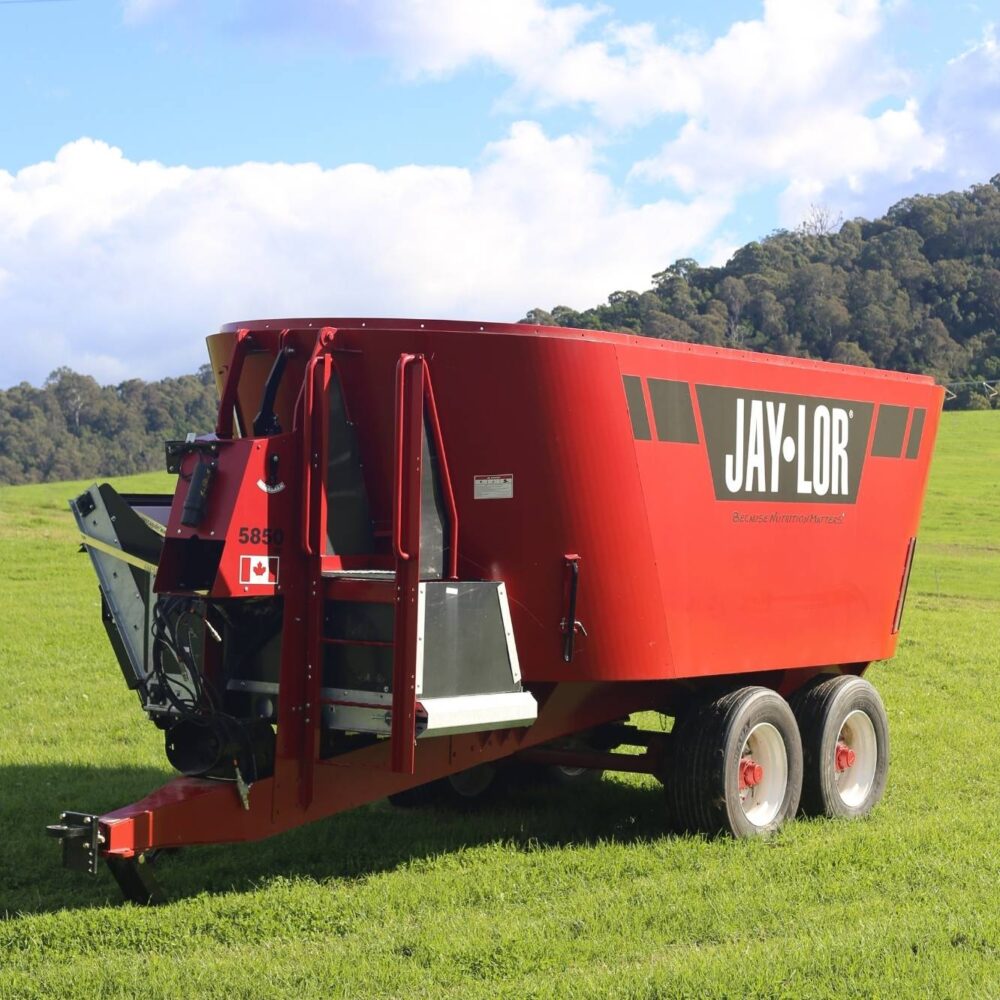

JAYLOR 5850HD TMR Twin Auger

Rugged and reliable. This time-proven heavy duty 5850HD mixer is up for the rigours of the all-day use of commercial feeding operations. Process Two 5×6 or 4, 4×5 round bales per load (3,840 lbs/1,740 kg of hay equivalent). Compatible with full complement of advanced scale accessories, fed management software, remote controls and management. Feed up to 160 head of dairy cattle, or 200 beef cows, or 800 adult sheep/goats per load per day, (depending on ration composition of course). A popular upgrade allows the included DG500 scale to automatically upload as-fed results over cellular data to the DTM cloud where they can be compared to the target, and further optimized.

Capacity No Extension
800ft³ | 22.7m³
Capacity 8″ Extension
865ft³ | 24.5m³
Capacity 12″ Extension
910ft³ | 25.8m³
Capacity 16″ Extension
960ft³ | 27.2m³
17600lbs | 8000kg
116in | 295cm
308in | 782cm
Drum Width
97in | 246cm
Pto Speed
1000 RPM
Minimum Hp
135 HP
Auger Speed
38 RPM
Number Of Knives
Auger Flighting Thickness
3/4in | 19mm
Max Discharge Height
68in | 173cm*
Conveyor Width
36in | 91cm
Door Opening Width
42in | 107cm
Floor Thickness
3/4in | 19mm
Drum Wall Thickness
1/4in | 6mm
Standard Tires
445/50R22.5 (4)
Wheel Assembly
Walking Beam
* with optional 72″ conveyor



5850HD TMR Twin Auger
